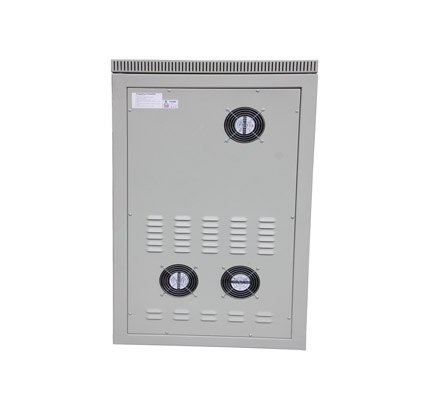

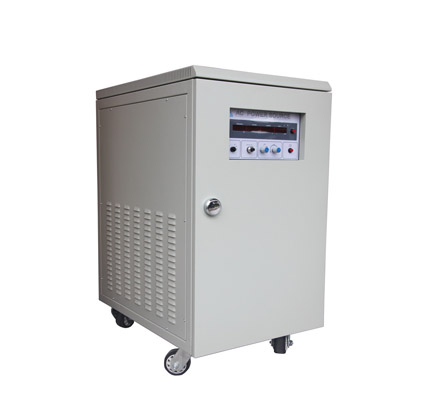

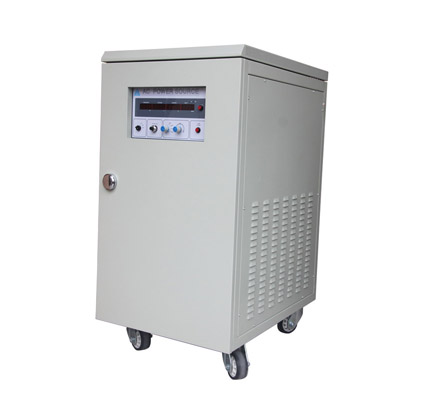

YK-BP88 Frequency converter
Product Model : YK-BP88 series
Product Information :
Input voltage:1 phase/3 phase Output voltage:1 phase/3 phase AC Input frequency:50/60hz AC output Phase voltage:0-150v,0-300v Output frequency:400hz for military or aircraft Output capacity:0-600kva Output adjust type:knob type

Information

The 3 phase Frequency converter series of YK-BP88 adjustable frequency ac power supply is widely used in many kinds of professional fields. Provide customers the systematic solution of power supply: the consideration of electric environment, optimization of load collocation, matching of power supply selection, design of conforming to requirements, excelsior and highly efficient manufacture, timely and perfect maintenance, etc., all of which of YK-BP88 adjustable frequency ac power supply can fully meet customers’requirements.

Character

1. Use the unique transient value double ring control, high precision, good quality waveform, can adapt to various load

2. IGBT high frequency static conversion, small volume, light weight, low noise, high efficiency, convenient use.

3. Microprocessor control, output voltage frequency online adjustable, can see the operation and failure clearly.

4. Control display digital LED panel, convenient use

5. Isolated transformer isolated output, safe and steady, good adaptability, can bear the reverse electromotive force of load terminal

6. Protect function, with over current, over voltage, over temperature, short circuit and alarm.

7. Strong loading capability, 120%, 10 minutes; 150% 1 second.

8. Tri-phase independence, can bear tri-phase non balance load

9. Main components are original imported, reliable quality

Application

For civil use, for industrial use, for military or aircraft use etc.

Customize Range

Regard as the frequency converter , we can customized different specification are as following

Ø 1phase/3phase input

Ø 1phase/3phase output

Ø 50hz, 60hz, 45-70hz, 400hz available.

Ø With 1-200KVA capacity.

For civil use, for industrial use, for military or aircraft use etc.

Model	Input voltage	Output voltage	AC Input frequency	AC output Phase voltage	Output frequency	Output capacity	Output adjust type
YK-BP81 Series	1phase/3 phase	1 phase	50/60hz	0-150V 0-300V	50/60hz, 45-70hz, 400hz option	0-200kva	Knob type
YK-BP80 Series	1phase/3 phase	1 phase	50/60hz	0-150v 151-300v	47-63hz 220v/50hz, 110v/60hz, 120v/60hz	0-200kva	Press key type
YK-BP83 Series	1phase/3 phase	3 phase	50/60hz	0-150V 0-300V	50/60hz, 45-70hz, 400hz option	0-600kva	Knob type
YK-BP88 Series	1phase/3 phase	1phase/3 phase	50/60hz	0-150V 0-300V	400hz for military or aircraft	0-600kva	Knob type

Specification

1/3 Phase Input Single Phase Output

Model (YK-BP)

88-005

8801

8802

8803

8805

8810

8815

8820

8830

8845

8860

88100

Rated Capacity
(KVA)

500

100

Circuit Mode

IGBT/PWM

AC Input

Single-phase 220V/50Hz,60Hz

Tri-phase 380V/50Hz,60Hz

AC Output

Phase

Single phase

Voltage

Low Range

0V～150V

Low Range

0V～300V

Frequency

400Hz

Max Current

0V-150V

4.2A

8.4A

16.8A

25A

42A

84A

126A

168A

250A

375A

500A

834A

0V-300V

2.1A

4.2A

8.4A

12.5A

21A

42A

63A

84A

125A

188A

250A

417A

Frequency Stability Rate

≤±0.1%

Load Stability Rate

±0.5%

Waveform Distortion

≤2%（linear load）

Respond Time

Max 2ms

Indication Resolution

Digit Frequency

4 digit resolution 0.1Hz

Digit Voltage

4 digit resolution 0.1V

Digit Current

4 digit resolution below 4A：0.001A above 4A：0.01A

Digit Power

4 digit resolution below 200W：0.1W above 200W：1W

Digit Frequency

4 digit resolution 0.001

Protector

Input no fuse switch, output fuse switch, electronics circuit speed detect the over voltage, over current, over load, over temperature, short circuit and automatic jump protection and alarm.

Cooling

Forced fan cooling

Environment

Operate Temperature

0℃～45℃

Related Humility

0～90%（non condensing ）

Dimension H*W*D(mm)

187*428*440

650*430*520

900*450*710

900*560*710

1200*560*800

1200*850*1020

1600*800*1200

1/3 Phase Input s Phase Output

Model (YK-BP)

8806

8810

8815

8820

8830

8845

8860

88100

88150

88200

Rated Capacity(KVA)

100

150

200

Capacity of
each Phase(KVA)

3.2

Circuit Mode

IGBT/PWM

AC Input

Single phase 220V/50Hz、60Hz

Tri-phase 380V±10％， 50Hz、60Hz

AC output

Phase

Tri-phase ( phase potential difference 120°±2°)

Voltage

Low
Range

Phase voltage :0V～150V(line voltage:0V～260V)

High
Range

Phase voltage:0V～300V(line voltage:0V～520V)

Frequency

400Hz

Man Current of each Phase

0V～150V

16.8A

28A

42A

58A

84A

126A

168A

276A

416A

556A

0V～300V

8.4A

14A

21A

29A

42A

63A

84A

138A

208A

278A

Frequency Stability Rate

≤±0.1%

Load Stability Rate

±0.5%

Waveform Distortion

Sine wave，≤±2%(linear load)

Respond Time

Max 2ms

Indication Resolution

Digit Frequency

4 digit resolution 0.1Hz

A、B、C phase change optionally

Digit Voltage

4 digit resolution 0.1V

Digit Current

4 digit resolution below 4A ：0.001A above 4A：0.01A

Digit Power

4 digit resolution below 200W：0.1W above 200W：1W

Power Factor

4 digit resolution： 0.001

Protector

Input no fuse switch, output fuse switch, electronics circuit speed detect the over voltage, over current, over load, over temperature, short circuit and automatic jump protection and alarm.

Cooling

Forced fan cooling

Environment

Operation Temperature

-10℃～60℃

Related Humility

0～90%（non condensing）

Dimension H×W×D(mm)

950*610*725

1200*700*1020

1200*850*1020

1200*950*1420

1500*950*1800

1200*850*1020
