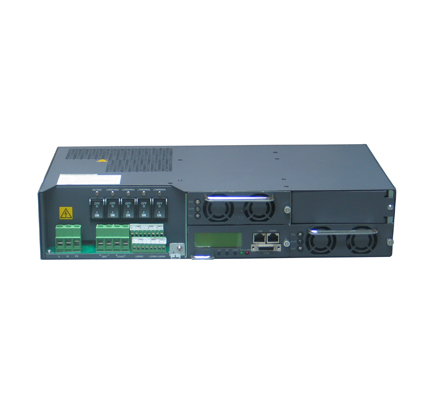

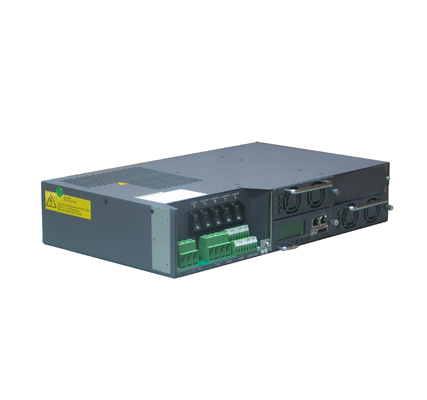

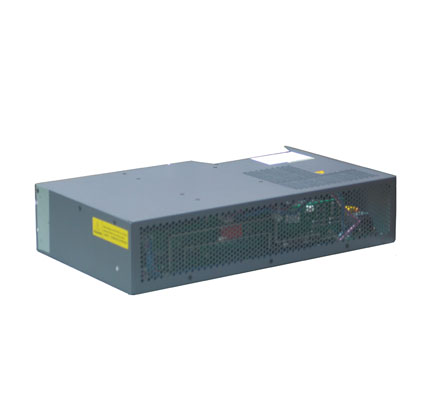

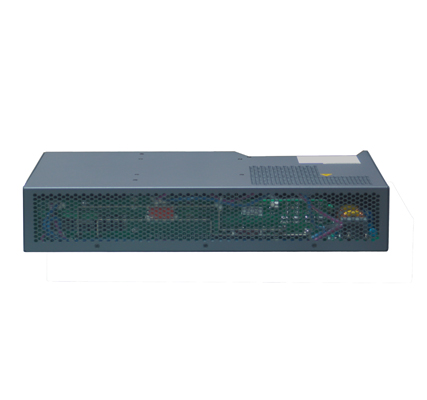

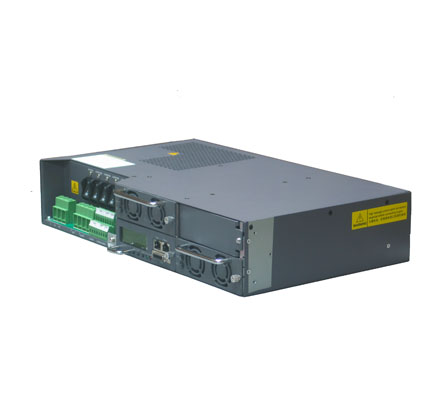

48vdc 90A 2U power rectifier system|48vdc 90A 2U dc rectifier system|48vdc 90A 2U dc telecom rectifier system

1. Small size, height 2U, 3 *30A rectifier module
2. Configurable module: 10A, 15A, 20A, 30A for option
3. The standard 19-inch installation
4. The product of 48vdc 90A 2U power rectifier system can improve monitoring and management and battery management
5. Provide RS485 communication interface
6. 4 channel load output, 1 channel battery input
7. Battery anti-reverse function
8. Under electrical function
9.The product of 48vdc 90A 2U power rectifier system can support hot-swappable
10.The energy-saving sleep function
11.The independent design of lightning protection unit (optional)
12.The power supply of 48vdc 90A 2U power rectifier system can be installed in any 19-inch rack independently
13.6- channel dry contact output

Small scale program controlled exchanges

Access network

Transmission equipment

Mobile communication

Satellite communication ground station

Microwave communication

A Whole Rectifier System is composed of following item
No.	QTY	Item name	Noted
1	1pc	Rack Mount	1U/2U/3U**11U or cabinet option
2	1pc	Monitor Module	With LCD or without LCD Display option
3	*pc	Rectifier Module	10A/20A/30A/50A option *mean different QTY. for Example 2/3/4/5/6…pc.
4	1pc	DC Distribution	Stand alone DC Distribution or build in the system option

Customized Range
