48vdc 200A 6U power system dc rectifier|48vdc 200A 6U rectifier system|48vdc 200A 6U Power System

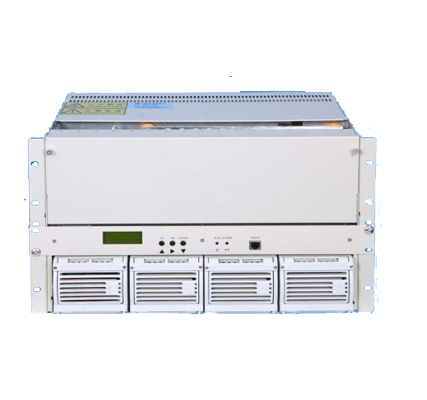

48vdc 200A 6U Rack rectifier system
Product Model : YK-GPE48200-6U
Product Information :
AC input voltage range: 90VAC-285VAC DC input voltage range: 100DC-400VDC Maximum input current: 60A Input frequency range: 45Hz-66Hz Power Factor: ≥0.99 effectiveness: ≥92% Rated output voltage: 48VDC Rated output voltage range: 43VDC-58VDC Output rated current: 0A-200A

1. Small size, height 6U, 4 *50A rectifier module

2. The standard 19-inch installation

3. Improve monitoring and management and battery management

4. Provide RS485 communication interface

5. 12 channel load output or 10 channel load output, 2 channel battery input

6. Battery anti-reverse function

7. Under electrical function

8. The product of 48vdc 200A 6U power system dc rectifier can support hot-swappable

9. The energy-saving sleep function

10. The independent design of 48vdc 200A 6U power system dc rectifier have lightning protection unit (optional).

11. The power supply of 48vdc 200A 6U power system dc rectifier can be installed in any 19-inch rack independently

12. 6- channel dry contact output

l Small scale program controlled exchanges

l Access network

l Transmission equipment

l Mobile communication

l Satellite communication ground station

l Microwave communication

A Whole Rectifier System is composed of following item
No.	QTY	Item name	Noted
1	1pc	Rack Mount	1U/2U/3U**11U or cabinet option
2	1pc	Monitor Module	With LCD or without LCD Display option
3	*pc	Rectifier Module	10A/20A/30A/50A option *mean different QTY. for Example 2/3/4/5/6…pc.
4	1pc	DC Distribution	Stand alone DC Distribution or build in the system option

Customized Range
