Test Item

Performance Parameter

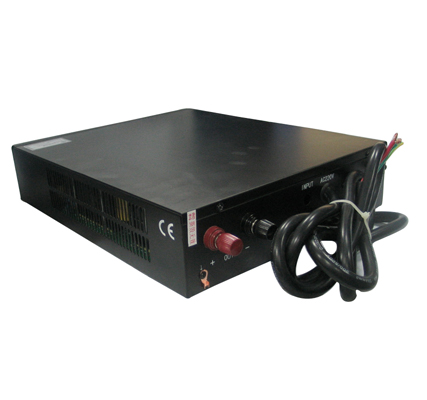

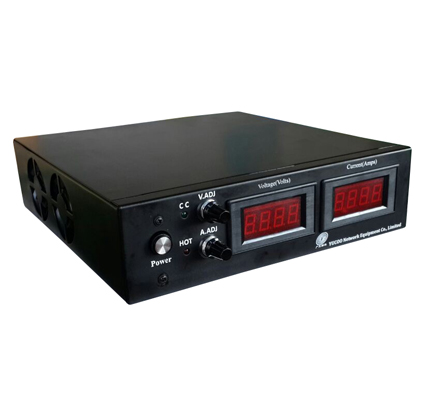

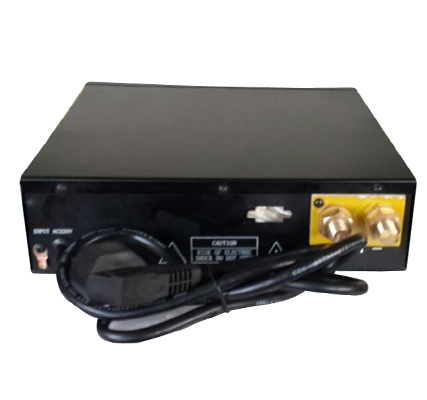

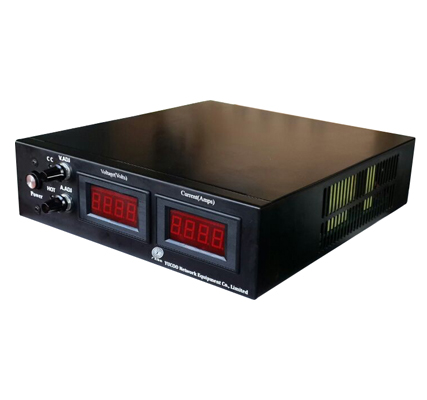

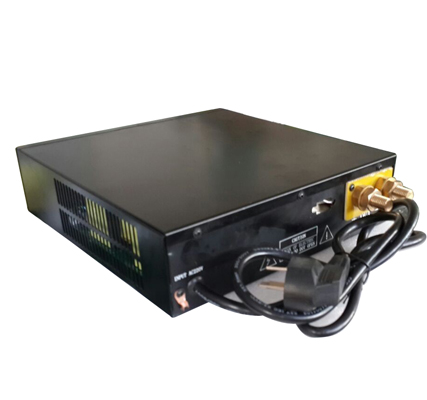

Model(YK-AD Series)

YK-AD3005

Output range

0-300V 0-5A

Output mode

Constant voltage (or appointed) variable/adjustable
Constant current (or appointed) variable/adjustable

AC wide input

1phase AC110V±15% 50/60Hz/
1phase AC220V±15% 50/60Hz/
3 phase AC380V±15% 50/60Hz

Power

Max 1500W

Source Voltage Regulation

constant voltage ≤0.2％

Load Regulation

constant voltage ≤1％； constant current≤2％

Line regulation:

constant voltage ≤0.3%

Ripple Voltage

total ripple Vpp≤2% (max voltage)(60V*2%=1.2V)
100Hz Ripple: Vpp≤0.5%(max voltage)(60V*0.5%=0.3V)

Operation Environment temperature

(-10～45)℃

Efficiency

≥89％

Digital meter

voltage meter and current meter

Digital display

Precision of output voltage±1.5%
Precision of output current±2.0%

Insulating resistance

Input-Output：≥20MΩ

Input— Shell：≥20MΩ

Output-Shell：≥80MΩ

Insulating Strength

Input-Output：AC1500V，10mA，1minute

Input— Shell：AC1500V，10mA，1minute

Output-Shell：AC1500V，10mA，1minute

Imbalance of equalized current

≤5％＋2.5A

Protection

Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; switch-on delay soft starting can avoid the over swung output voltage when switching on.

over-temperature protection

(70～80)℃

MTTF

≥50000h

External dimension

253(W)*68(H)*268(D)mm

Weight

NW 5.0kg

Radiating wind hole

Internal radiating wind hole

0-100% Constant Adjustable Output (V/A)

Output Rate Power (W)

YK-AD0360

0-3V,  0-60A

150

YK-AD520

0-5V,  0-20A

150

YK-AD550

0-5V, 0-50A

250

YK-AD580

0-5V, 0-80A

400

YK-AD555

0-5V, 0-55A

275

YK-AD5120

0-5V, 0-120A

600

YK-AD5200

0-5V, 0-200A

1000

YK-AD6200

0-6V, 0-200A

1410

YK-AD8400

0-8V, 0-400A

2800

YK-AD8100

0-8V, 0-100A

800

YK-AD8190

0-8V, 0-190A

1520

YK-AD8190

0-8V, 0-190A

1520

YK-AD1020

0-10V, 0-20A

200

YK-AD1040

0-10V, 0-40A

400

YK-AD1050

0-10V, 0-50A

500

YK-AD10180

0-10V, 0-180A

1800

YK-AD10250

0-10V, 0-250A

2500

YK-AD10300

0-10V, 0-300A

3000

YK-AD1215

0-12V, 0-15A

180

YK-AD1230

0-12V, 0-30A

360

YK-AD1230

0-12V, 0-30A

450

YK-AD122440

0-12/24V, 0-40A

960

YK-AD1250

0-12V,  0-50A

600

YK-AD1280

0-12V, 0-80A

960

YK-AD12100

0-12V, 0-100A

1200

YK-AD12200

0-12V, 0-200A

2400

YK-AD1280

0-12V, 0-80A

960

YK-AD12100

0-12V, 0-100A

1200

YK-AD12300

0-12V, 0-300A

3600

YK-AD12400

0-12V, 0-400A

4800

YK-AD1310

0-13V, 0-10A

130

YK-AD1520

0-15V, 0-20A

300

YK-AD1530

0-15V, 0-30A

450

YK-AD1540

0-15V, 0-40A

600

YK-AD1550

0-15V, 0-50A

750

YK-AD1560

0-15V, 0-60A

900

YK-AD15100

0-15V, 0-100A

1500

YK-AD15120

0-15V, 0-120A

1800

YK-AD15200

0-15V, 0-200A

3000

YK-AD15300

0-15V, 0-300A

4500

YK-AD16300

0-16V, 0-300A

4800

YK-AD18100

0-18V, 0-100A

1800

YK-AD2410

0-24V, 0-10A

240

YK-AD2020

0-20V, 0-20A

400

YK-AD2020

0-20V, 0-20A

400

YK-AD2030

0-20V, 0-30A

600

YK-AD2040

0-20V, 0-40A

800

YK-AD20150

0-20V, 0-150A

3000

YK-AD20160

0-20V, 0-160A

3000

YK-AD2412

0-24V, 0-12A

288

YK-AD4820

0-48V, 0-20A

960

YK-AD2420

0-24V, 0-20A

480

YK-AD24120

0-24V, 0-120A

2880

YK-AD2440

0-24V, 0-40A

960

YK-AD2450

0-24V, 0-50A

1200

YK-AD2460

0-24V, 0-60A

1440

YK-AD2460

0-24V, 0-60A

1440

YK-AD24130

0-24V, 0-130A

3120

YK-AD24130

0-24V, 0-130A

3120

YK-AD24140

0-24V, 0-140A

3360

YK-AD24150

0-24V, 0-150A

3600

YK-AD2520

0-25V, 0-20A

500

YK-AD2525

0-25V, 0-25A

625

YK-AD2530

0-25V, 0-30A

750

YK-AD25400

0-25V, 0-400A

10000

YK-AD2910

0-29V, 0-10A

290

YK-AD29100

0-29V, 0-100A

2900

YK-AD301.5

0-30V, 0-1.5A

45

YK-AD305

0-30V, 0-5A

150

YK-AD305

0-30V, 0-5A

150

YK-AD304

0-30V, 0-7A

210

Output voltage

Automatic identification battery voltage

Equal/float  voltage

Digital display

Output current constant adjustable

Charging mode

Suitable for all kind of lead acid battery

Adjustable dc battery charger

Voltage adjust from 0v-max (v)

Yes

Be set before factory

Yes

Yes

Yes

Yes

Full auto battery charger

Can not adjust

No

Set by the end user

Yes

Yes

Yes

Yes

Switching power supply

DC adjustable power supply

Output voltage

Generally The output voltage is 12VDC 24VDC 48VDC，Narrow range of Output voltage

Can customize any voltage. Such as:0~1000VDC. The output voltage range 0~100% continues adjustable

Output current

If less than 50A generally 10A 15A 20A 25A 30A 50A
The output current is not adjustable. But the power with battery interface, the output current can be adjustable within narrow range of Output voltage

Can customize any current.
Such as 0~1000A.The output current range 0~100% continues adjustable

Application

Communication engine room

Battery charging,lab and etc.

Output interface

With battery interface (optional)+terminal output

Without battery interface ,only one terminal output

Equal charging & Float charging

Have equal charging and float charging, and can switch automatically

Don’t have equal charging and float charging, and
Need manual adjustment.

Display

current and voltage just can switch display in one LED

Current and voltage display respectively

Machine parallel

Support multiple machines of same specifications parallel use

Can’t support parallel

Communication interface

RS485/232 optional

Without communication interface（If need communication interface,Can consult the factory of HuaYuan, the price is higher）

Input voltage range

Input AC range widely 176V～280V. But can’t make 110V/380V
3 phase input

110/220/380+/-20% is the most wide input range

Appearance

Rack mount type

Desktop and Rack mount type can be customized

Working frequency

160KHz

50/60HZ
