0-100Vdc 0-60A

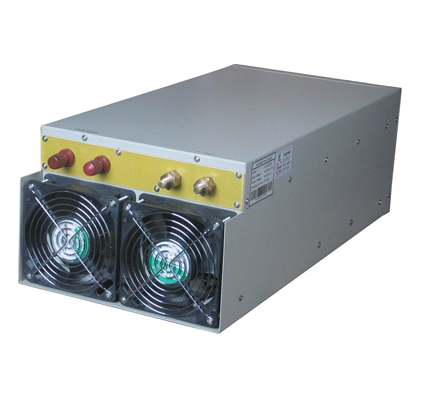

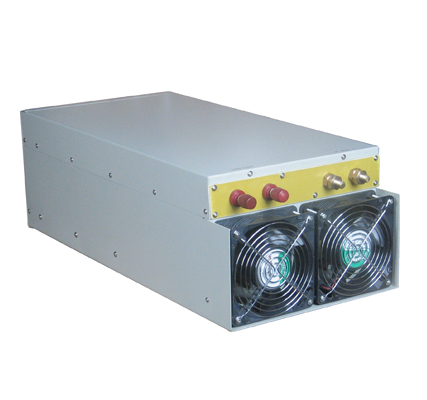

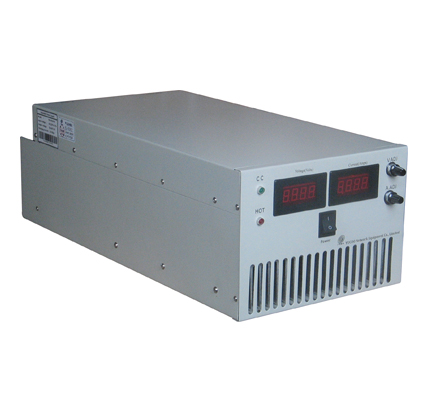

Product Model : YK-AD10060
Product Information :
1. 1 phase AC220V/110v±15% or 3 phase 380vac 50/60hz input, 2. Voltage (0-100)VDC adjustable 3. Current (0-60)A adjustable output, 4. The Max Power 6000W

Character

• Advanced switching mode power supply technology and components, excellent design, small volume, light weight, high efficiency, which ensures the stability and reliability of long-term full-load operation.

• Constant voltage value and constant current value can be continuously adjustable within the range 0~100%

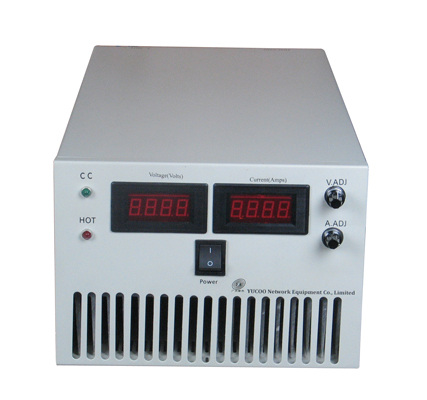

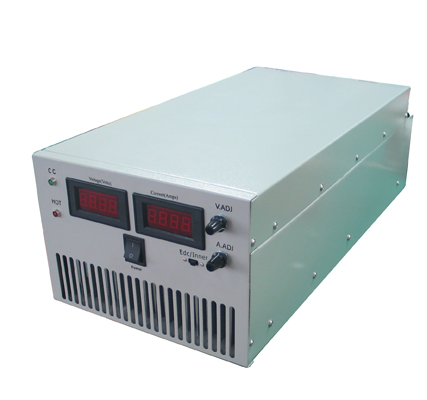

• Digital display output voltage and output current.

• Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; start up delay soft starting can avoid the overshoot voltage when start up.

• Simple operation, convenient use

• Store temperature: (-40～70)℃, Working temperature: (-20～50)℃

• Relative humidity: 90% (40±2℃), atmospheric pressure (70-106)kPa

Customize Range

Regards the Variable DC power supply,

We can customize any constant voltage and constant current according to your request.
Such as:

· 0-1500V variable or appointed

· 0-2000A variable or appointed

Specification

Test Item	Performance Parameter
Model	YK-AD10060
Output range	0-100V 0-60A
Output mode	Constant voltage (or appointed) variable/adjustable Constant current (or appointed) variable/adjustable
AC wide input	1phase AC110V±15% 50/60Hz/ 1phase AC220V±15% 50/60Hz/ 3 phase AC380V±15% 50/60Hz
Power	Max 6000W
Source Voltage Regulation	constant voltage ≤0.2％
Load Regulation	constant voltage ≤1％； constant current≤2％
Line regulation:	constant voltage ≤0.3%
Ripple Voltage	total ripple Vpp≤2% (max voltage)(60V2%=1.2V) 100Hz Ripple: Vpp≤0.5%(max voltage)(60V0.5%=0.3V)
Operation Environment temperature	(-10～45)℃
Efficiency	≥89％
Digital meter	voltage meter and current meter
Digital display	Precision of output voltage±1.5% Precision of output current±2.0%
Insulating resistance	Input-Output：≥20MΩ
	Input— Shell：≥20MΩ
	Output-Shell：≥80MΩ
Insulating Strength	Input-Output：AC1500V，10mA，1minute
	Input— Shell：AC1500V，10mA，1minute
	Output-Shell：AC1500V，10mA，1minute
Imbalance of equalized current	≤5％＋2.5A
Protection	Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; switch-on delay soft starting can avoid the over swung output voltage when switching on.
over-temperature protection	(70～80)℃
MTTF	≥50000h
Dimension	255(W)176(H)540(D)mm
Weight	NW 16.5kg
Radiating wind hole	Internal radiating wind hole

What is different between battery charger and adjustable dc battery charger?

Product name	Output voltage	Automatic identification battery voltage	Equal/float voltage	Digital display	Output current constant adjustable	Charging mode	Suitable for all kind of lead acid battery
Adjustable dc battery charger	Voltage adjust from 0v-max (v)	Yes	Be set before factory	Yes	Yes	Yes	Yes
Full auto battery charger	Can not adjust	No	Set by the end user	Yes	Yes	Yes	Yes

What is the difference Between Switching power supply and DC adjustable power supply?

Item Product	Switching power supply	DC adjustable power supply
Output voltage	Generally The output voltage is 12VDC 24VDC 48VDC，Narrow range of Output voltage	0-100Vdc 0-60A Variable regulated power supply can customize any voltage. Such as:0~1000VDC. The output voltage range 0~100% continues adjustable
Output current	If less than 50A generally 10A 15A 20A 25A 30A 50A The output current is not adjustable. But the power with battery interface, the output current can be adjustable within narrow range of Output voltage	0-100Vdc 0-60A Variable regulated power supply can customize any current. Such as 0~1000A.The output current range 0~100% continues adjustable
Application	Communication engine room	Battery charging,lab and etc.
Output interface	With battery interface (optional)+terminal output	Without battery interface ,only one terminal output
Equal charging & Float charging	Have equal charging and float charging, and can switch automatically	0-100Vdc 0-60A Variable regulated power supply don’t have equal charging and float charging, and Need manual adjustment.
Display	current and voltage just can switch display in one LED	Current and voltage display respectively
Machine parallel	Support multiple machines of same specifications parallel use	Can’t support parallel
Communication interface	RS485/232 optional	Without communication interface（If need communication interface,Can consult the factory of HuaYuan, the price is higher）
Input voltage range	Input AC range widely 176V～280V. But can’t make 110V/380V 3 phase input	110/220/380+/-20% is the most wide input range
Appearance	Rack mount type	Desktop and Rack mount type can be customized
Working frequency	160KHz	50/60HZ
