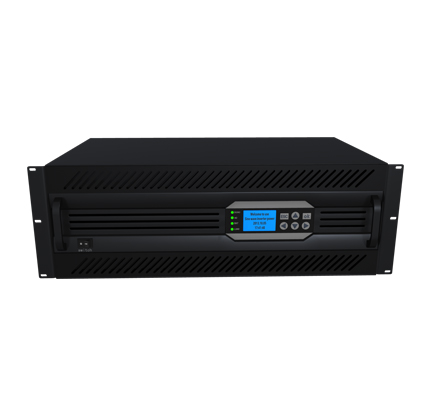

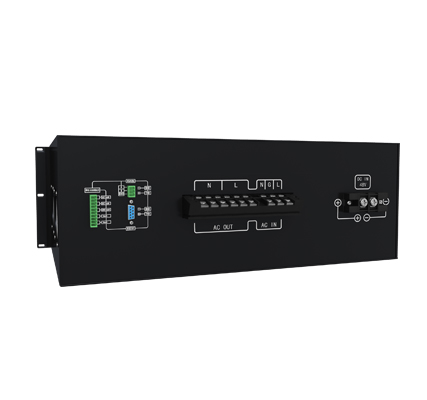

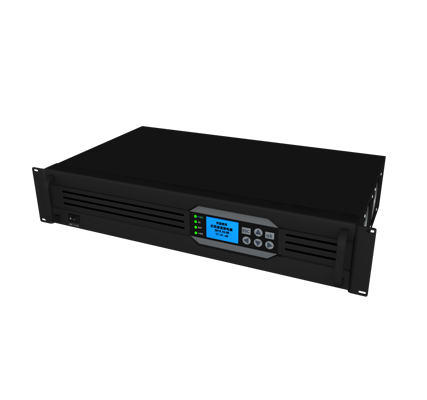

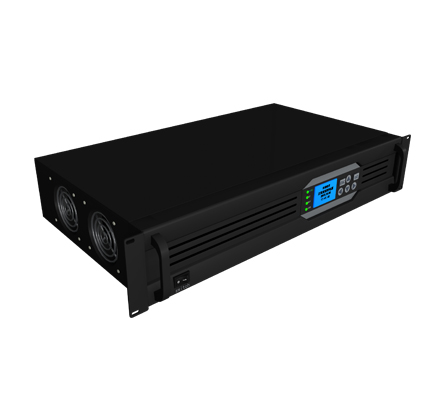

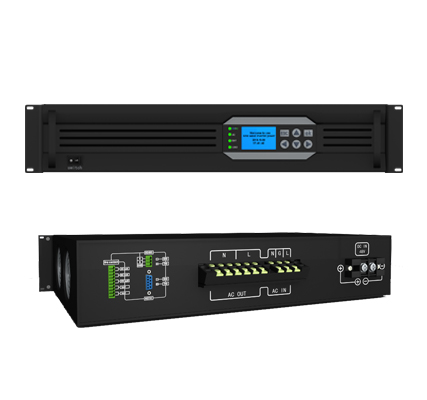

  • 220Vdc to 220Vac Power Inverter
  • Product Model : YK-DA-HD series
  • Product Information :

    1.new DC to AC conversion power supply. 2.widely used in the fields such as Telecom, Mobile, Unicom, Aviation and spaceflight, finance management, OA, industrial auto control, medical treatment and sanitation, military affairs, scientific research etc. Use the battery DC as input, after inverting, 3.ultra-reliable ,work continuously in long time. 4.can solve the limitation of short backup time of UPS. ensure the continually and reliable working of electro-equipments.

  • Information
1.Along with the quick development of information network technology, Inverter / Power Inverter / Inverter Power Supply is a new DC to AC conversion power supply.
2.The inverter power supply of 220Vdc to 220Vac dc ac power inverter is widely used in the fields such as Telecom, Mobile, Unicom, Aviation and spaceflight, finance management, OA, industrial auto control, medical treatment and sanitation, military affairs, scientific research etc. Use the battery DC as input, after inverting,
3.220Vdc to 220Vac dc ac power inverter that It will output the pure sine wave AC. The output voltage and frequency is ultra-reliable and and work continuously in long time. Inverter can eliminate the disadvantage such as power interrupt, un constant voltage, noise interfere and surge etc. At the same time,
4.Inverter of 220Vdc to 220Vac dc ac power inverter can solve the limitation of short backup time of UPS. So Inverter can ensure the continually and reliable working of electro-equipments.




  • Character
YK-DA-HD series pure sine wave Inverter / Power Inverter / Inverter Power Supply is a new device which can invert the DC to AC, special design for the electric power system.
1. Software protection and hardware protection, high reliability
2. Perfect protection: input polarity reverse, input over/under voltage, over current, short circuit, over heat. Also the soft start function
3. 3 Layers composite filter and magnetism shielded which and reduce the reflect noise voltage to the input port, perfect electromagnetism compatibility.
4.  Intelligent Fan

5.  Can connect with pure sensibility load (Should reduce voltage)

  • Customize Range

Regard as the pure sine wave inverter for telecom, we can customize below range


Input & Output voltage

Capacity

  1. 19Inch 2U/4U Rack Mount
  2. With LCD+LED Display
  3. With RS232 Communication port
  4. Power Factor 0.8

220vac output design

24vdc-220vac

1-5KVA

48vdc -220vac

1-6KVA & 8KVA

110vdc -220vac

1-6KVA & 8KVA

220vdc-220vac

1-6KVA & 8KVA& 10KVA

120vac output design

24vdc-220vac

1-5KVA

48vdc -220vac

1-6KVA

110vdc -220vac

1-6KVA

Order List for 220VAC output design


Model

DC Main Input

AC bypass Input

AC Output & Frequency

Capacity

Noted

48VDC to 220VAC 1-8KVA

YKDA-HT1000

48VDC

AC220V
±10%

AC220V
50Hz/60hz

1KVA

2U/19inch
482*347*88(mm)

YKDA-HT2000

2KVA

YKDA-HT3000

3KVA

YKDA-HT4000

4KVA

2U/19inch
482*430*88(mm)

YKDA-HT5000

5KVA

YKDA-HT6000

6KVA

YKDA-HT8000

8KVA

4U/19inch
482*480*176(mm)

110VDC to 220VAC 1-8KVA

YKDA-HD1000

110VDC

AC220V
±10%

AC220V
50Hz/60hz

1KVA

2U/19inch
482*347*88(mm)

YKDA-HD2000

2KVA

YKDA-HD3000

3KVA

YKDA-HD4000

4KVA

2U/19inch
482*430*88(mm)

YKDA-HD5000

5KVA

YKDA-HD6000

6KVA

YKDA-HD8000

8KVA

4U/19inch
482*480*176(mm)

220VDC to 220VAC 1-10KVA

YKDA-HD1000

220VDC

AC220V
±10%

AC220V
50Hz/60hz

1KVA

2U/19inch
482*347*88(mm)

YKDA-HD2000

2KVA

YKDA-HD3000

3KVA

YKDA-HD4000

4KVA

2U/19inch
482*430*88(mm)

YKDA-HD5000

5KVA

YKDA-HD6000

6KVA

YKDA-HD8000

8KVA

4U/19inch
482*480*176(mm)

YKDA-HD10000

10KVA

24VDC to 220VAC 1-5KVA

YKDA-HT1000

24VDC

AC220V
±10%

AC220V
50Hz/60hz

1KVA

2U/19inch
482*347*88(mm)

YKDA-HT2000

2KVA

YKDA-HT3000

3KVA

YKDA-HT4000

4KVA

2U/19inch
482*430*88(mm)

YKDA-HT5000

5KVA

Order List for 120VAC output design


Model

DC Main Input

AC bypass Input

AC Output & Frequency

Capacity

Noted

24VDC To 120VAC (1-5KVA)

YKDA-HT1000

24VDC

110Vac/220Vac

110vac/
120vac
50hz 60hz

1KVA

19Inch 2U
482*347*88(mm)

YKDA-HT2000

2KVA

YKDA-HT3000

3KVA

19Inch 2U
482*430*88(mm)

YKDA-HT4000

4KVA

19Inch 4U
482*480*176(mm)

YKDA-HT5000

5KVA

48VDC to 120Vac (1-6KVA)

YKDA-HT1000

24VDC

110Vac/220Vac

110vac/
120vac
50hz 60hz

1KVA

19Inch 2U
482*347*88(mm)

YKDA-HT2000

2KVA

YKDA-HT3000

3KVA

19Inch 2U
482*430*88(mm)

YKDA-HT4000

4KVA

YKDA-HT5000

5KVA

19Inch 4U
482*480*176(mm)

YKDA-HT6000

6KVA

110VDC to 120Vac (1-6KVA)

YKDA-HD1000

24VDC

110Vac/220Vac

110vac/
120vac
50hz 60hz

1KVA

19Inch 2U
562*492*195(mm)

YKDA-HD2000

2KVA

YKDA-HD3000

3KVA

19Inch 2U
575*562*195(mm)

YKDA-HD4000

4KVA

YKDA-HD5000

5KVA

19Inch 4U
590*570*420(mm)

YKDA-HD6000

6KVA

  • Specification

Model (YKDA-HD**)

500

1000

2000

3000

4000

5000

6000

8000

Rate capacity(VA)

0.5

1

2

3

4

5

6

8

Rate output power

400

800

1600

2400

3200

4000

4800

6400

Dc input

Rated input voltage

220VDC

Rate input Current

3A

5A

10.5A

16A

21A

26.3A

31.6A

36.9

Shut down voltage range

190V~270V

Start-up voltage range

207V~260V

Reflect noise current

≤10%

AC Input

Allow bypass voltage

220Vac±15%

Rate input Current

2.3A

4.5A

9.1A

13.6A

18.2A

22.7A

27.3A

31.9

Bypass switch time

≤5ms

AC output

Rate output voltage and frequency

220Vac,50Hz

Waveform

Pure Sine Wave

Rate output current

1.8A

3.6A

7.2A

10.8A

14.5A

15.9A

19.1A

22.3

Output voltage precision

220V±1.5%

Output frequency precision

50Hz±0.1%

Waveform distortion

≤3%  (linear load) (THD)

Dynamic respond time

5%  (Load0←→100%)

Power factor

0.7/0.8

Overload ability

120%,30s

Efficiency

≥85%

Insulating intensity

1500Vac,1min

Noise (1m)

≤40dB

Operation temperature

-5℃~40℃

Humility

0~90%, non condensing

Operation altitude

≤1000m

Inverter status

Mains supply is normal, invert normal, battery under voltage, output overloading

Shape

19Inch(2U) (mm)

482*88.8*252

482*88.8*352

482*88.8*382

483*176*414

Weight

6Kg

7Kg

8Kg

11Kg

15Kg

17Kg

18Kg

Standalone type(W*H*L) (mm)

/

175*274*452

220*330*452

176*518*474.6

Weight

/

8Kg

9Kg

12Kg

16Kg

19Kg

20Kg

Color

Grey/White

Black

Protect function

Input under/over voltage, output overloading, short circuit, city power high-low voltage protection

Output mode

Socket or terminal block

Terminal block
