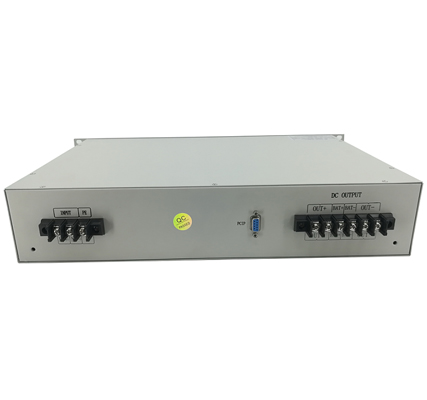

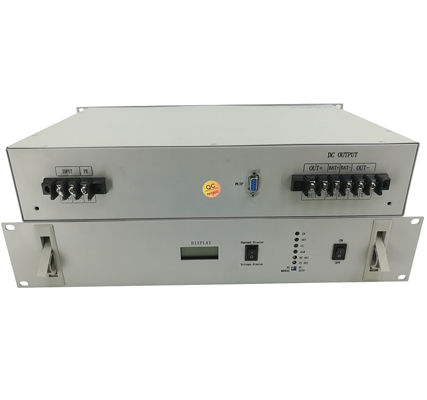

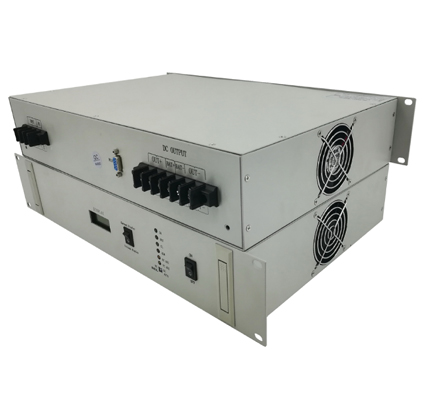

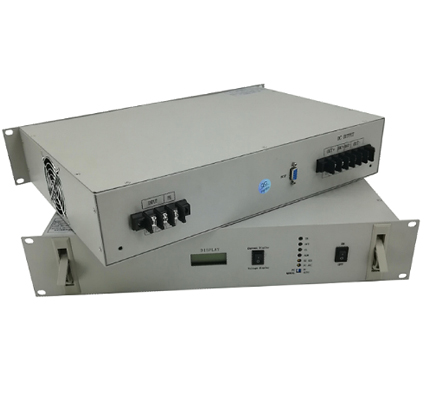

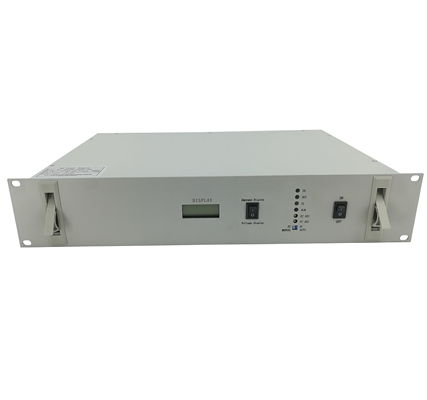

YK-AD series High Frequency Switching Power Supply /SMPS of 24V switching mode power supply is a high efficient, high performance and high reliable telecom power supply. YK-AD series High Frequency Switching Power Supply /SMPS of 24V switching mode power supply adopts the most advanced PWM technique and reliable circuit topological structure. YK-AD series High Frequency Switching Power Supply/SMPS has many good points, including small volume, light weight, high efficiency, wide working temperature range, strong anti-jamming, wide input range, fast dynamic response, high stability, low noise and ripple, strong protection function etc.
YK-AD series High Frequency Switching Power Supply/SMPS of 24V switching mode power supply is apply to Computer Numerical Control Machine Tools, data processing and other equipments; They also can be used as the charge/discharge equipment of battery and automatically protect to battery.
Regard as HF Switching Power Supply / rectifier. we can customize are as following
|
Model |
Input Voltage |
Output |
Output |
Load Port |
Battery Port |
Rack Dimension |
|
YK-AD4810 |
AC220V |
DC48V |
10A |
4chs |
/ |
1U |
|
YK-AD4810A1I |
AC220V |
DC48V |
10A |
4chs |
1chs |
1U |
|
YK-AD4815 |
AC220V |
DC48V |
15A |
2chs |
2chs |
2U |
|
YK-AD4820 |
AC220V |
DC48V |
20A |
2chs |
2chs |
2U |
|
YK-AD4825 |
AC220V |
DC48V |
25A |
2chs |
2chs |
2U |
|
YK-AD4830 |
AC220V |
DC48V |
30A |
2chs |
2chs |
2U |
|
YK-AD4850 |
AC220V |
DC48V |
50A |
1chs |
1chs |
2U |
|
YK-AD4860 |
AC220V |
DC48V |
60A |
1chs |
1chs |
2U |
|
YK-AD4880 |
AC220V |
DC48V |
80A |
1chs |
1chs |
2U |
|
YK-AD48100 |
AC220V |
DC48V |
100A |
1chs |
1chs |
2U |
|
YK-AD2420 |
AC220V |
DC24V |
20A |
4chs |
/ |
1U |
|
YK-AD2430 |
AC220V |
DC24V |
30A |
2chs |
2chs |
2U |
|
YK-AD2440 |
AC220V |
DC24V |
40A |
2chs |
2chs |
2U |
|
YK-AD2450 |
AC220V |
DC24V |
50A |
2chs |
2chs |
2U |
|
YK-AD2460 |
AC220V |
DC24V |
60A |
2chs |
2chs |
2U |
|
YK-AD2480 |
AC220V |
DC24V |
80A |
2chs |
2chs |
2U |
|
Item |
Performance Parameter |
Test Condition |
||||
|
Model (YK-AD24** Series) |
2420 |
2430 |
2440 |
2450 |
||
|
Output |
24V 20A |
24V 30A |
24V 40A |
24V 50A |
||
|
Input Voltage |
220V |
|||||
|
Input Voltage Range |
176V~280V |
Output Full-load |
||||
|
Start up Surge |
<12A |
Output Full-load |
||||
|
Input Current |
8A |
Output Full-load |
||||
|
Output Float Charging Voltage |
27.0V |
Factory Settings |
||||
|
Module Equal Charging Voltage |
29.0V |
Factory Settings |
||||
|
Output Voltage Range |
20~29VDC Adjustable |
29.5V over voltage protection, need to restart |
||||
|
Output Current |
30A |
Output Limiting Current (101%-105%) |
||||
|
Power Gird Regulation |
±0.1%max |
Output zero load to full load |
||||
|
Load Regulation |
±0.5%max |
Output zero load to full load |
||||
|
Dynamic Response |
100usmax |
2 20%~100% load |
||||
|
Output Phone Weighted Noise |
<2mV |
Noise Meter |
||||
|
Output Peak Noise |
≤200mV |
0~20MHz |
||||
|
Efficiency |
>88% |
|||||
|
Working Frequency |
160KHz |
|||||
|
Start up Delay Time |
≤5S |
|||||
|
Hold Time |
≥20mS |
|||||
|
Equalized-current Deviation |
<5% |
<2A |
||||
|
Temperature Coefficient |
0.02%℃ |
|||||
|
Working Temperature |
-10℃~+45℃ |
85℃ over temperature protection, can be restore |
||||
|
Storage Temperature |
-40℃~+85℃ |
|||||
|
Working Humidity |
5%~95%RH |
Without Condensing |
||||
|
Insulating Strength Leakage Current |
<30mA |
50Hz2000V/500V/1min |
||||
|
Insulating Resistance |
>10MΩ |
DC 1000V |
||||
|
Weight |
5kg |
7.5kg |
||||
|
Dimension(mm) |
235*483*44 |
Rack Mount Type:483*88*300 |
(W*H*D) |
|||
