  • 12Vdc to 48Vdc (1-6A)
  • Product Model : YKDD12S48**Series
  • Product Information :

    A. Input Voltage: 12vdc(10-32vdc) B. Output Voltage:48Vdc C. Output Current: 1-6A D. Non-Isolated design /Constant voltage design/Waterproof E. High efficiency

  • Character
1.Constant voltage design
2.SMT Process
3.Non-Isolated Module
4.2:1 wide input range
5.Built-in EMI filter, low ripple noise
6.100% full load burn-in test
7.Certificates :CE
8.Waterproof level : IP67
9.Protections: Short circuit/Over load /voltage / Automatic recovery work
10.Ultra compact size, light weight , high reliability
11.1 year warranty, lifetime up to 100,000 hours

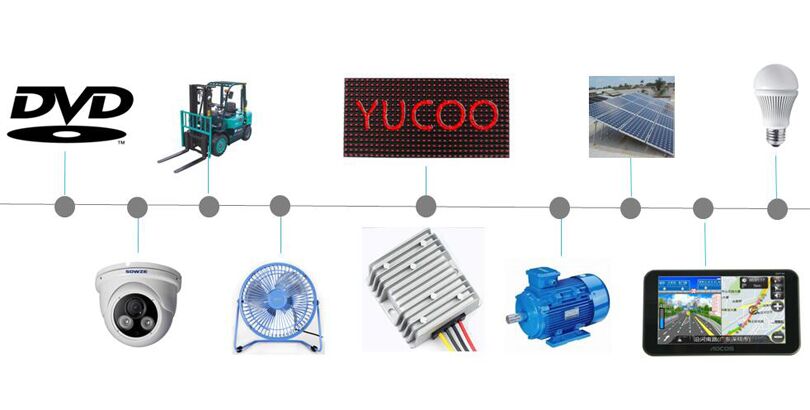

  • Application
1.Electric motors, Electric fans , Trucks, Golf Carts ,Forklifts
2.Navigation, surveillance, Air conditioning
3.LED car display, DVD, LED lights, Audio
4.Wind Power System, Solar Power System, Photo voltaic energy
5.Electrical appliances, industrial equipment, telecommunications and so on.
  • Customize Range

BUCK DC-DC CONVERTER MODEL LIST


Model Series

Input-V

Output-V

Output Current

YK-DD1224S5**

12V/24V

5V

3A|5A|10A|15A|20A|30A|40A|50A|60A

YK-DD24S12**

24V

12V

1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A

YK-DD24S13.8**

24V

13.8V

5A|10A|15A|20A|30A|40A|50A|60A

YK-DD24S19**

24V

19V

5A|10A|15A

YK-DD36S12**

36V

12V

5A|10A|15A|20A|30A|50A|60A

YK-DD48S5**

48V

5V

5A|10A|15A|20A

YK-DD48S12**

48V

12V

5A|10A|15A|20A|30A|50A|60A

YK-DD48S13.8**

48V

13.8V

5A|10A|15A|20A|30A|40A|50A|60A

YK-DD48S19**

48V

19V

5A|8A|10A

YK-DD48S24**

48V

24V

3A|5A|10A|15A|20A|30A|40A|50A

YK-DD60S12**

60V

12V

5A|10A|15A

YK-DD60S24**

60V

24V

5A|10A

BOOST DC-DC CONVERTER MODEL LIST


Model Series

Input-V

Output-V

Output Current

YK-DD12S24**

12V

24V

1A|2A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A

YK-DD12S19**

12V

19V

5A|8A|10A|15A|20A

YK-DD12S28**

12V

28V

3 A|5A|8A|10A|15A|20A|25A|30A|40A

YK-DD12S36**

12V

36V

1A|2A|3A|5A|6A|8A|10A|20A|30A|40A

YK-DD12S48**

12V

48V

1A|2A|3A|4A|8A|10A|15A|20A

YK-DD24S48**

24V

48V

3 A|5A|10A|20A|30A|40A

YK-DD24S36**

24V

36V

5A

BUCK& BOOST DC-DC CONVERTER MODEL LIST


Model Series

Input-V

Output-V

Output Current

YK-DD12S12**

8-40V

12V

1A|2A|3A|5A|6A|10A|15A|20A|25A

YK-DD12S13.8**

8-40V

13.8V

3A|5A|10A|15A|20A|25A

YK-DD24S24**

9-40V

24V

2A|3A|4A|6A|10A|15A

ISOLATED BUCK DC-DC CONVERTER MODEL LIST


Model Series

Input-V

Output-V

Output Current

YK-DD48S12**

35-100V

12V

8A|10A

YK-DD48S5**

36-75V

5V

15A|20A

YK-DD48S24**

36-75V

24V

5A

AC-DC CONVERTER MODEL LIST


Model Series

Input-V

Output-V

Output Current

YK-ACD12S12**

10-28V

12V

1A|2A|3A|5A|6A|8A|10A

YK-ACD24S12**

15-28V

12V

1A|2A|3A|5A|6A|8A|10A

YK-ACD24S5**

8-28V

5V

1A|2A|3A|5A|6A|8A|10A

YK-ACD24S24**

22-28V

24V

1A|2A|3A|5A|6A|8A|10A

YK-ACD36S5**

AC8-38V

5V

1A|2A|3A|5A|6A|8A|10A

YK-ACD36S12**

AC15-38V

12V

1A|2A|3A|5A|6A|8A|10A

YK-ACD36S24**

AC32-38V

24V

1A|2A|3A|5A|6A|8A|10A

  • Specification

Model
YK-DD12S48*

1.5

2.1

3

5

6

Input

Rate voltage

12Vdc

Input voltage

10-32Vdc

Output

Rate voltage

48Vdc±0.25vdc

Rate current

1.5A

2.1A

3A

5A

6A

Rate power

72W

100W

144W

240W

288W

Conversion efficiency

>90%

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load  current

< 60mA

Working temperature

-20~80℃

Waterproof rating

IP67

Protection

Over-current  /  voltage  /  load protection

Overheat protection

  Lower voltage protection

Intrusion protection

Short-circuit protection and automatic recovery

Full waterproof potting

Dimension

Small & thin plastic shell

SIZE : 46*27*14mm

NW: 30g

Middle plastic shell

SIZE : 46*32*18mm

NW: 50g

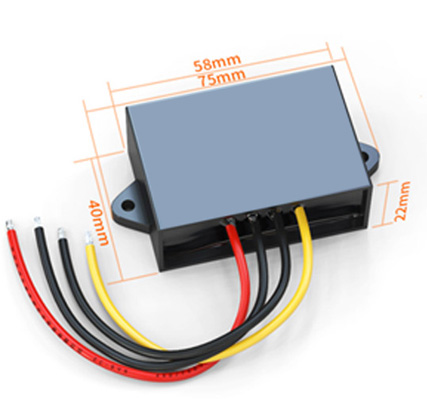

Large plastic shell

SIZE : 58*40*22mm

NW: 97g

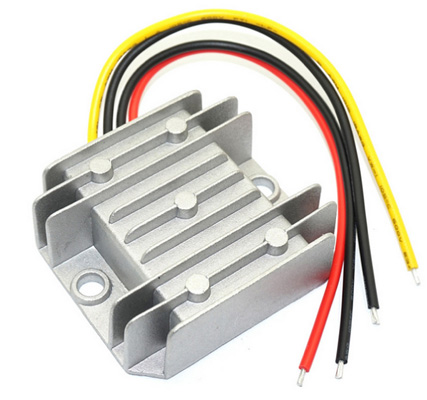

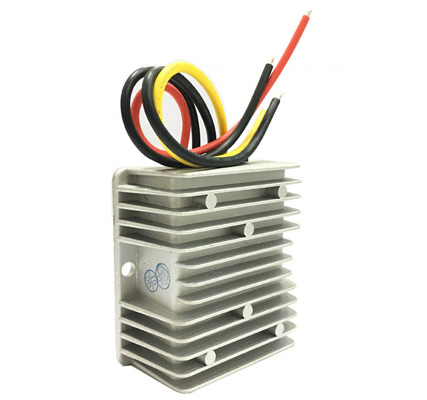

Small aluminum shell

SIZE : 43.5*24.5*20.5mm

NW: 45g

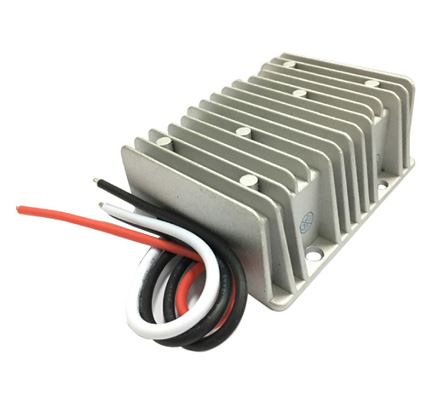

Large aluminum shell

SIZE : 74*74*32mm

NW: 250g

Install cable

13-15(cm)
