48Vdc to 36Vdc（1-10A）
Product Model : YKDD48S36**Series
Product Information :
A.Input Voltage:48vdc(40-60vdc) B.Output Voltage:36V C.Output Current:1-10A D.Non-Isolated design /Constant voltage design/Waterproof E.High efficiency

1. Constant voltage design

2. SMT Process

3. Non-Isolated Module

4. 2:1 wide input range

5. Built-in EMI filter, low ripple noise

6. 100% full load burn-in test

7. Certificates :CE

8. Waterproof level : IP67

9. Protections: Short circuit/Over load /voltage / Automatic recovery work

10. Ultra compact size, light weight , high reliability

11. 1 year warranty, lifetime up to 100,000 hours

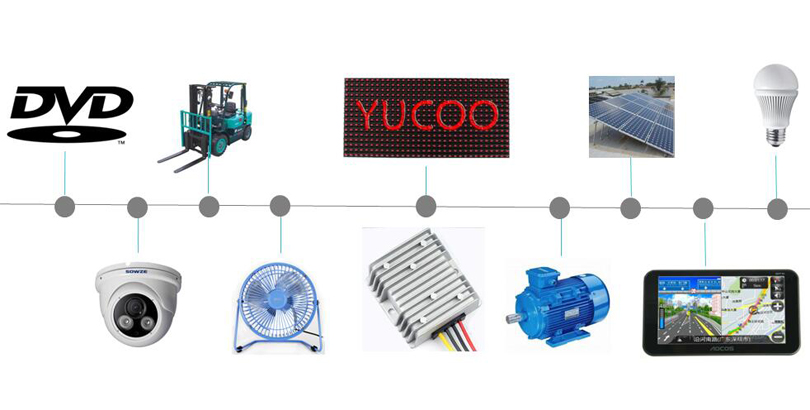

1. Electric motors, Electric fans , Trucks, Golf Carts ,Forklifts

2. Navigation, surveillance, Air conditioning

3. LED car display, DVD, LED lights, Audio

4. Wind Power System, Solar Power System, Photo voltaic energy

BUCK DC-DC CONVERTER MODEL LIST

BOOST DC-DC CONVERTER MODEL LIST

BUCK& BOOST DC-DC CONVERTER MODEL LIST

ISOLATED BUCK DC-DC CONVERTER MODEL LIST

AC-DC CONVERTER MODEL LIST

Model	YK-DD48S365	YK-DD48S368		YK-DD48S3610
Input
Rate voltage	48Vdc
Input voltage	40-60Vdc
Output
Rate voltage	36vdc±0.25vdc
Rate current	5A	8A		10A
Rate power	180W	288W		360W
Conversion efficiency	>90%
Voltage regulation	±1%
Load regulation	± 2%
Ripple (Full load test)	< 150mV
No-load current	< 60mA
Working temperature	-20~80℃
Waterproof rating	IP67
USB Portoption (9 types design for option)	Dual cable +Dual USB Dual cable output+ dual USB with install hole Dual cable + Dual USB female port Dual USB female port micro port mini P5 PORT USB female port with install hole USB Female port USB+MICRO
Protection	Over-current / voltage / load protection
	Overheat protection
	Lower voltage protection
	Intrusion protection
	Short-circuit protection and automatic recovery
	Full waterproof potting

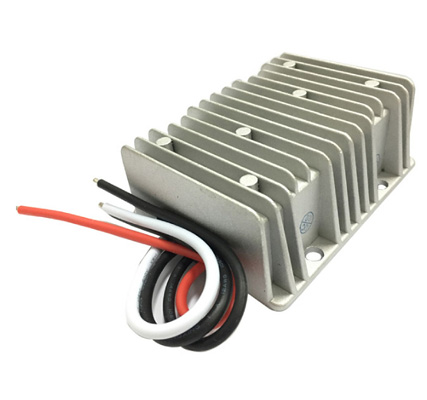

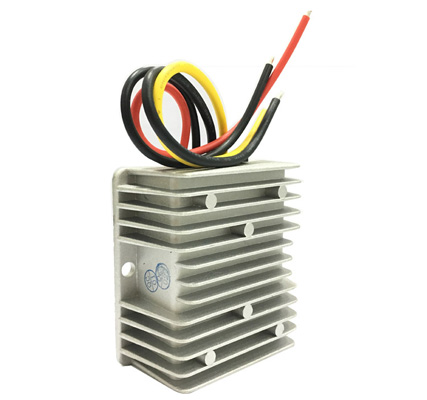

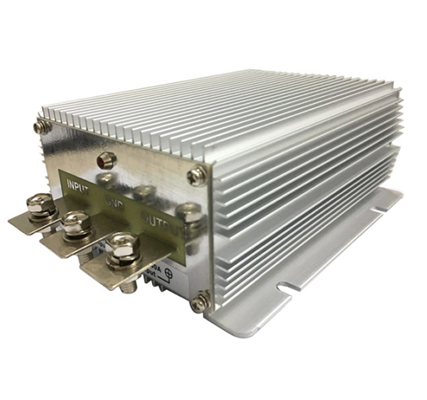

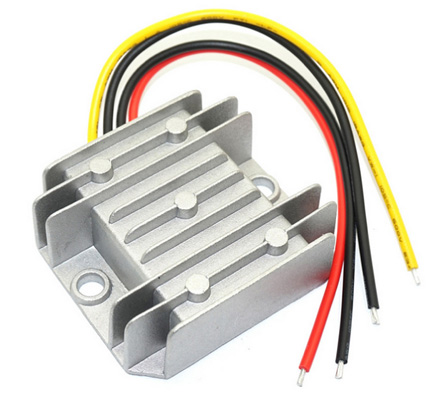

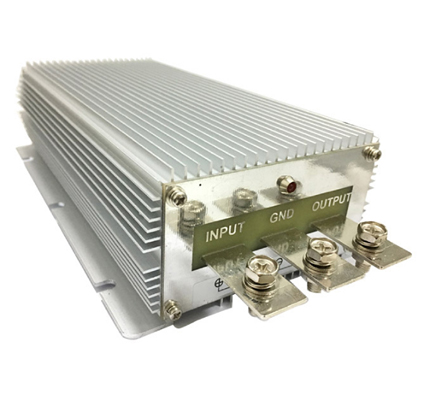

Dimension	Small & thin plastic shell		SIZE : 462714mm		NW: 30g
	Middle plastic shell		SIZE : 463218mm		NW: 50g
	Large plastic shell		SIZE : 584022mm		NW: 97g
	Small aluminum shell		SIZE : 43.524.520.5mm		NW: 45g
	Large aluminum shell		SIZE : 747432mm		NW: 250g
Install cable	13-15(cm)
