60Vdc to 5Vdc (1-20A) solar dc to dc converter|60Vdc to 5Vdc (1-20A) solar dc dc converter|60Vdc to 5Vdc (1-20A) dc to dc step down

60Vdc to 5Vdc (1-20A)
Product Model : YKDD605**Series
Product Information :
A.Input Voltage:60vdc(8-75vdc) B.Output Voltage:5V C.Output Current:1-20A D.Non-Isolated design /Constant voltage design/Waterproof E.High efficiency

1. Constant voltage design

2. SMT Process

3. Non-Isolated Module

4. 2:1 wide input range

5. Built-in EMI filter, low ripple noise

6. 100% full load burn-in test

7. Certificates :CE

8. Waterproof level : IP67

9. Protections: Short circuit/Over load /voltage / Automatic recovery work

10. Ultra compact size, light weight , high reliability

11. 1 year warranty, lifetime up to 100,000 hours

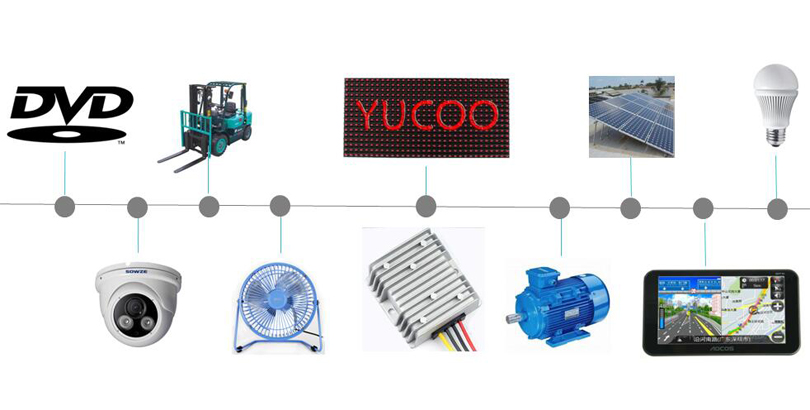

1. Electric motors, Electric fans , Trucks, Golf Carts ,Forklifts

2. Navigation, surveillance, Air conditioning

3. LED car display, DVD, LED lights, Audio

4. Wind Power System, Solar Power System, Photo voltaic energy

BUCK DC-DC CONVERTER MODEL LIST

BOOST DC-DC CONVERTER MODEL LIST

BUCK& BOOST DC-DC CONVERTER MODEL LIST

ISOLATED BUCK DC-DC CONVERTER MODEL LIST

AC-DC CONVERTER MODEL LIST

Model	YK-DD60S55	YK-DD60S510		YK-DD60S515	YK-DD60S520
Input
Rate voltage	60Vdc
Input voltage	8-75Vdc
Output
Rate voltage	5vdc±0.25vdc
Rate current	5A	10a		15A	20a
Rate power	25W	50W		75W	100W
Conversion efficiency	>90%
Voltage regulation	±1%
Load regulation	± 2%
Ripple (Full load test)	< 150mV
No-load current	< 60mA
Working temperature	-20~80℃
Waterproof rating	IP67
USB Portoption (9 types design for option)	Dual cable +Dual USB Dual cable output+ dual USB with install hole Dual cable + Dual USB female port Dual USB female port micro port mini P5 PORT USB female port with install hole USB Female port USB+MICRO
Protection	Over-current / voltage / load protection
	Overheat protection
	Lower voltage protection
	Intrusion protection
	Short-circuit protection and automatic recovery
	Full waterproof potting

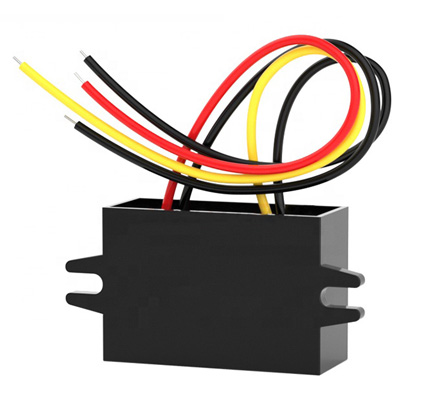

Dimension	Small & thin plastic shell		SIZE : 462714mm			NW: 30g
	Middle plastic shell		SIZE : 463218mm			NW: 50g

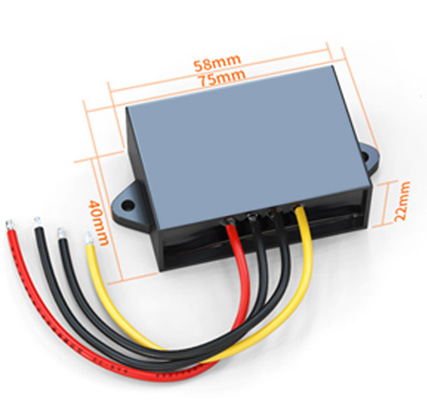

	Large plastic shell		SIZE : 584022mm			NW: 97g

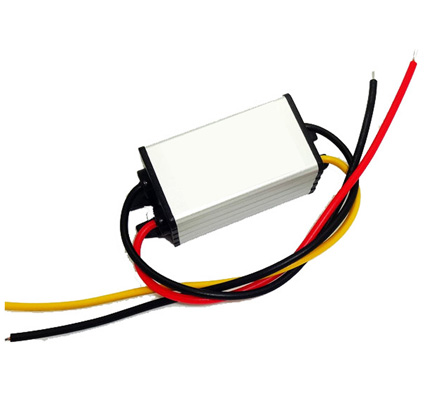

	Small aluminum shell		SIZE : 43.524.520.5mm			NW: 45g

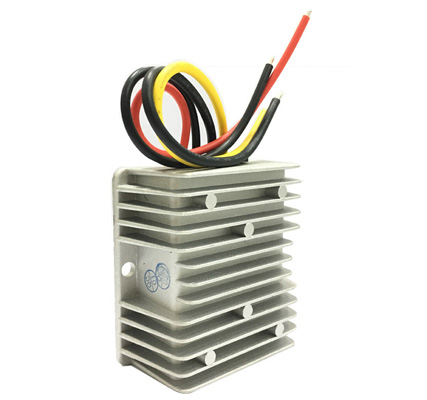

	Large aluminum shell		SIZE : 747432mm			NW: 250g
Install cable	13-15(cm)
