60Vdc to 36Vdc（1-10A）
Product Model : YKDD60S36**Series
Product Information :
A.Input Voltage:60vdc(40-75vdc) B.Output Voltage:36V C.Output Current:1-10A D.Non-Isolated design /Constant voltage design/Waterproof E.High efficiency

1. Constant voltage design

2. SMT Process

3. Non-Isolated Module

4. 2:1 wide input range

5. Built-in EMI filter, low ripple noise

6. 100% full load burn-in test

7. Certificates :CE

8. Waterproof level : IP67

9. Protections: Short circuit/Over load /voltage / Automatic recovery work

10. Ultra compact size, light weight , high reliability

11. 1 year warranty, lifetime up to 100,000 hours

1. Electric motors, Electric fans , Trucks, Golf Carts ,Forklifts

2. Navigation, surveillance, Air conditioning

3. LED car display, DVD, LED lights, Audio

4. Wind Power System, Solar Power System, Photo voltaic energy

BUCK DC-DC CONVERTER MODEL LIST

BOOST DC-DC CONVERTER MODEL LIST

BUCK& BOOST DC-DC CONVERTER MODEL LIST

ISOLATED BUCK DC-DC CONVERTER MODEL LIST

AC-DC CONVERTER MODEL LIST

Model YK-DD60S36	1	2	3		4	5	8		10
Input
Rate voltage	60Vdc
Input voltage	40-75Vdc
Output
Rate voltage	36vdc±0.25vdc
Rate current	1A	2A	3A		4A	5A	8A		10A
Rate power	36W	72W	108W		144W	180W	288W		360W
Conversion efficiency	>90%
Voltage regulation	±1%
Load regulation	± 2%
Ripple (Full load test)	< 150mV
No-load current	< 60mA
Working temperature	-20~80℃
Waterproof rating	IP67
USB Portoption (9 types design for option)	Dual cable +Dual USB Dual cable output+ dual USB with install hole Dual cable + Dual USB female port Dual USB female port micro port mini P5 PORT USB female port with install hole USB Female port USB+MICRO
Protection	Over-current / voltage / load protection
	Overheat protection
	Lower voltage protection
	Intrusion protection
	Short-circuit protection and automatic recovery
	Full waterproof potting

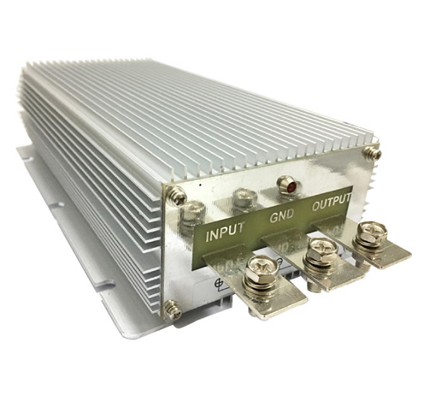

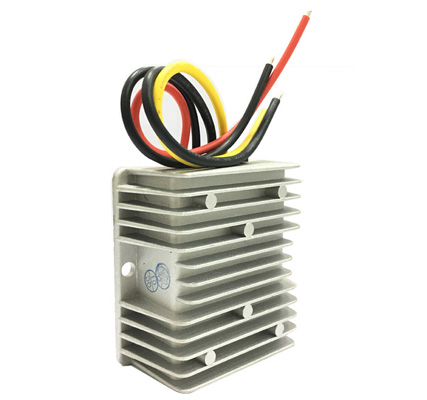

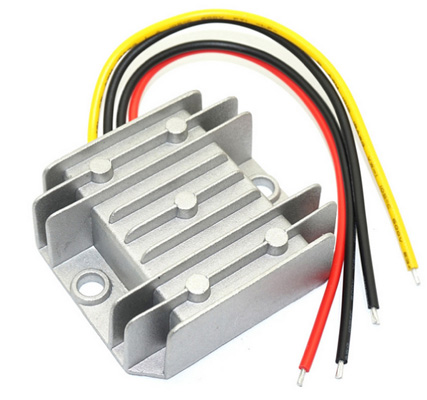

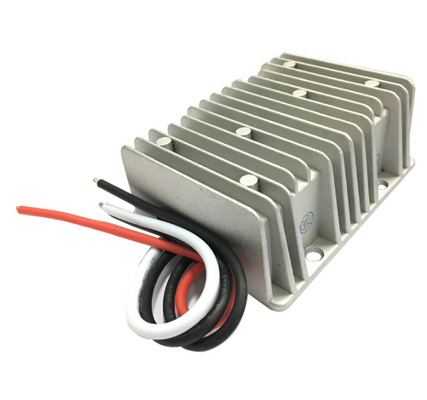

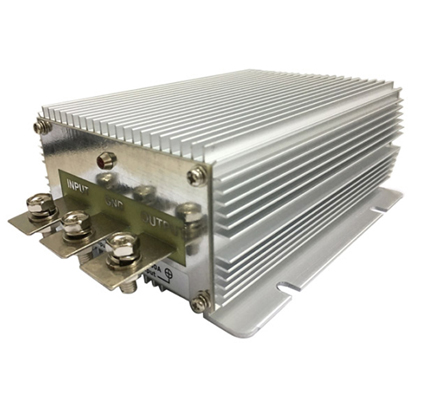

Dimension	Small & thin plastic shell			SIZE : 462714mm				NW: 30g
	Middle plastic shell			SIZE : 463218mm				NW: 50g
	Large plastic shell			SIZE : 584022mm				NW: 97g
	Small aluminum shell			SIZE : 43.524.520.5mm				NW: 45g
	Large aluminum shell			SIZE : 747432mm				NW: 250g
Install cable	13-15(cm)
