12V 24V battery charger for car Truck lead acid battery

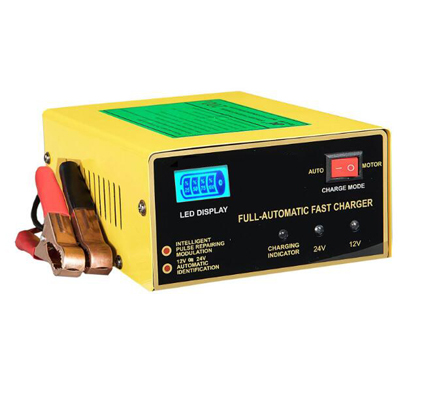

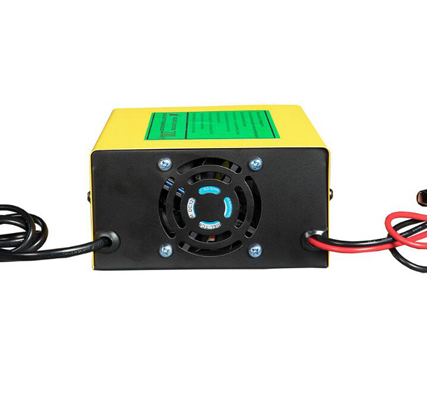

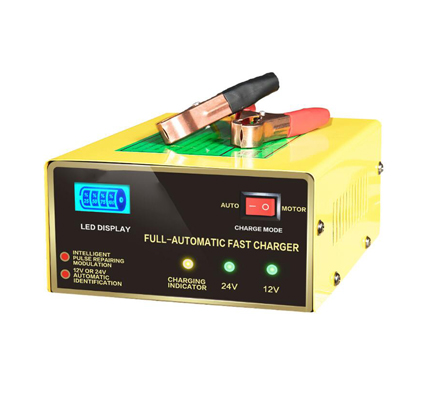

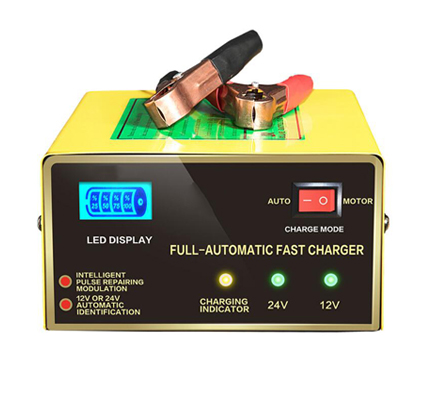

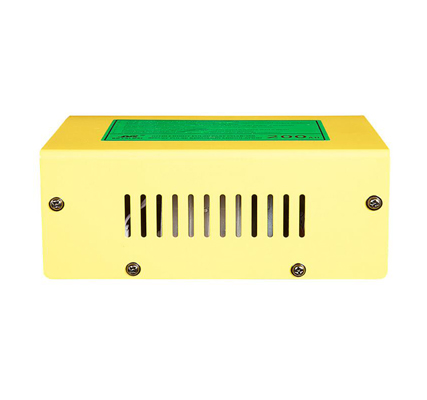

12V 24V 15A Motorcycle Car Automatic Lead acid Battery Charger
Product Model : YK-CD122415
Product Information :
1. Input Voltage: AC220V±15% (AC150V-250V) 2. Frequency: 47-63hz 3. Work Efficiency: 88% 4. Input mode: Pulse 5. Output Voltage: 12V 24V automatic identification 6. Output Current: 15A 7. Suitable: 12V Lead acid Battery（8-14.5V）; 24V Lead acid Battery（18-29V）

Information

1. Multi-function charger is widely used in 12v/24v battery, it can identify different kind of batteries in automatically
2. Multi-function charger Use the advanced pulse width modulation technology with three-stage battery charge in automatic function
3. Microcomputer power chip digital pulse restore to improving the battery life greatly.
4. With multiple protection.
5. Output short circuit protection & Overheating protect & Reverse connecting protection & Over current protection & Full charging automatic shutdown protection

Character

1. Intelligent charging and repairing integrated charger
2. 12V 24V automatic identification
3. Charge mode option : Intelligent charge and fast charge for switch
4. Multi protection : Short circuit protection/Reverse protection/Over-current protection/Overheating protection/Low voltage protection/Overvoltage protection

Application

1. Multi-function charger is widely used in 12v/24v battery, it can identify different kind of batteries in automatically
2. Application Field: Motorcycle /Vehicle /SUV/TRUCK

Customize Range

Regards Lead Acid Battery Charger, we can customize below model.
Such as:

12VDC 24VDC 10A
12VDC 24VDC 15A
12VDC 24VDC 25A

Specification

Model : YK-CD122415 Smart charging and repairing integrated charger
INPUT
Input Voltage	AC220V±15% (AC150V-250V)
Frequency	47-63hz
Work Efficiency	88%
Input mode	Pulse
OUTPUT
Output voltage	12Vdc 24Vdc , 12V 24V automatic identification
Output Current	15A
Suitable	12V Lead acid Battery（8-14.5V）; 24V Lead acid Battery（18-29V）
Intelligent charging mode	Automatically detect battery demand, current adjustable , battery be full stop power
Automatic charging mode	Manually check battery temperature, if temperature is too higher , charger stop charging
Multi protection	Short circuit protection/Reverse protection/Over-current protection/Overheating protection/Low voltage protection/Overvoltage protection
Display	With Digital LED Display window show the charge voltage/Current
WORK CONDITIONS
Operation temperature	-30℃ - +50℃
Operation humidity	5% to 95% RH Non-condensing
Fan noise	≤55Db
Max Altitude	10000m
Dimension & Weight
Dimension	17.5 13.57.5cm,
Weight	0.8kg
