24Vdc to 220Vac Pure Sine Wave Inverter

24Vdc to 220Vac Pure Sine Wave Inverter

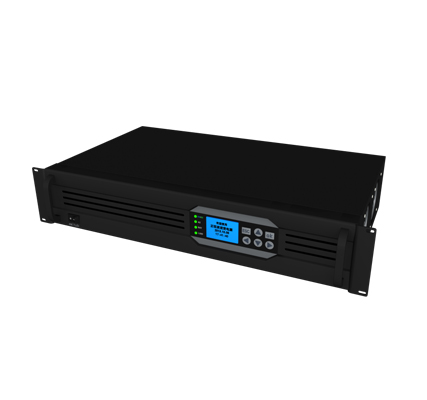

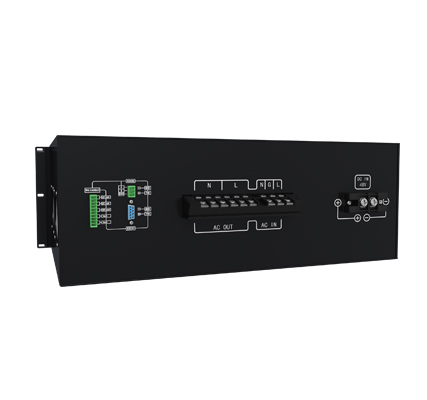

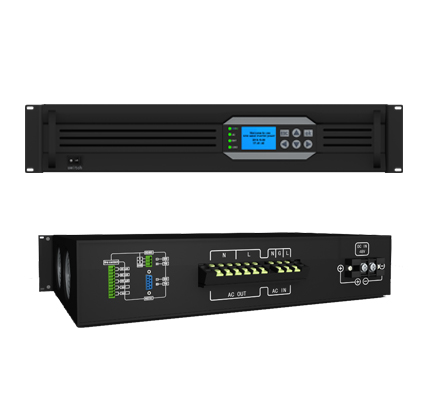

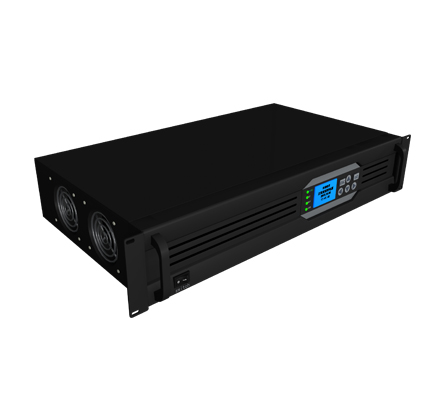

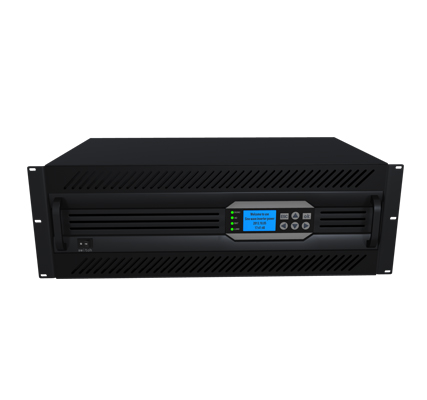

Product Model : YK-DA-HT series
Product Information :
1.new DC to AC conversion power supply. 2.widely used in the fields such as Telecom, Mobile, Unicom, Aviation and spaceflight, finance management, OA, industrial auto control, medical treatment and sanitation, military affairs, scientific research etc. 3.ultra-reliable ，work continuously in long time. 4.can solve the limitation of short backup time of UPS. ensure the continually and reliable working of electro-equipments.

Information

1.Along with the quick development of information network technology, Inverter / Power Inverter / Inverter Power Supply is a new DC to AC conversion power supply.

2.The inverter power supply is widely used in the fields such as Telecom, Mobile, Unicom, Aviation and spaceflight, finance management, OA, industrial auto control, medical treatment and sanitation, military affairs, scientific research etc.

3.Use the battery DC as input, after inverting,it will output the pure sine wave AC. The output voltage and frequency is ultra-reliable and and work continuously in long time. Inverter can eliminate the disadvantage such as power interrupt, un constant voltage, noise interfere and surge etc.

4.At the same time, Inverter can solve the limitation of short backup time of UPS. So Inverter can ensure the continually and reliable working of electro-equipments.

Character

YK-DA-HT series pure sine wave Inverter / Power Inverter / Inverter Power Supply is a new device which can invert the DC to AC, special design for the electric power system.

1. Software protection and hardware protection, high reliability

2. Perfect protection: input polarity reverse, input over/under voltage, over current, short circuit, over heat. Also the soft start function

3. 3 Layers composite filter and magnetism shielded which and reduce the reflect noise voltage to the input port, perfect electromagnetism compatibility.

4. Intelligent Fan

5. Can connect with pure sensibility load (Should reduce voltage)

Customize Range

Regard as the pure sine wave inverter for telecom, we can customize below range

Input & Output voltage	Capacity
19Inch 2U/4U Rack Mount With LCD+LED Display With RS232 Communication port Power Factor 0.8
220vac output design
24vdc-220vac	1-5KVA
48vdc -220vac	1-6KVA & 8KVA
110vdc -220vac	1-6KVA & 8KVA
220vdc-220vac	1-6KVA & 8KVA& 10KVA
120vac output design
24vdc-220vac	1-5KVA
48vdc -220vac	1-6KVA
110vdc -220vac	1-6KVA

Order List for 220VAC output design

Model	DC Main Input	AC bypass Input	AC Output & Frequency	Capacity	Noted
48VDC to 220VAC 1-8KVA
YKDA-HT1000	48VDC	AC220V ±10%	AC220V 50Hz/60hz	1KVA	2U/19inch 48234788(mm)
YKDA-HT2000				2KVA
YKDA-HT3000				3KVA
YKDA-HT4000				4KVA	2U/19inch 48243088(mm)
YKDA-HT5000				5KVA
YKDA-HT6000				6KVA
YKDA-HT8000				8KVA	4U/19inch 482480176(mm)
110VDC to 220VAC 1-8KVA
YKDA-HD1000	110VDC	AC220V ±10%	AC220V 50Hz/60hz	1KVA	2U/19inch 48234788(mm)
YKDA-HD2000				2KVA
YKDA-HD3000				3KVA
YKDA-HD4000				4KVA	2U/19inch 48243088(mm)
YKDA-HD5000				5KVA
YKDA-HD6000				6KVA
YKDA-HD8000				8KVA	4U/19inch 482480176(mm)
220VDC to 220VAC 1-10KVA
YKDA-HD1000	220VDC	AC220V ±10%	AC220V 50Hz/60hz	1KVA	2U/19inch 48234788(mm)
YKDA-HD2000				2KVA
YKDA-HD3000				3KVA
YKDA-HD4000				4KVA	2U/19inch 48243088(mm)
YKDA-HD5000				5KVA
YKDA-HD6000				6KVA
YKDA-HD8000				8KVA	4U/19inch 482480176(mm)
YKDA-HD10000				10KVA	4U/19inch 482480176(mm)
24VDC to 220VAC 1-5KVA
YKDA-HT1000	24VDC	AC220V ±10%	AC220V 50Hz/60hz	1KVA	2U/19inch 48234788(mm)
YKDA-HT2000				2KVA
YKDA-HT3000				3KVA
YKDA-HT4000				4KVA	2U/19inch 48243088(mm)
YKDA-HT5000				5KVA	2U/19inch 48243088(mm)

Order List for 120VAC output design

Model	DC Main Input	AC bypass Input	AC Output & Frequency	Capacity	Noted
24VDC To 120VAC (1-5KVA)
YKDA-HT1000	24VDC	110Vac/220Vac	110vac/ 120vac 50hz 60hz	1KVA	19Inch 2U 48234788(mm)
YKDA-HT2000				2KVA
YKDA-HT3000				3KVA	19Inch 2U 48243088(mm)
YKDA-HT4000				4KVA	19Inch 4U 482480176(mm)
YKDA-HT5000				5KVA
48VDC to 120Vac (1-6KVA)
YKDA-HT1000	24VDC	110Vac/220Vac	110vac/ 120vac 50hz 60hz	1KVA	19Inch 2U 48234788(mm)
YKDA-HT2000				2KVA
YKDA-HT3000				3KVA	19Inch 2U 48243088(mm)
YKDA-HT4000				4KVA
YKDA-HT5000				5KVA	19Inch 4U 482480176(mm)
YKDA-HT6000				6KVA
110VDC to 120Vac (1-6KVA)
YKDA-HD1000	24VDC	110Vac/220Vac	110vac/ 120vac 50hz 60hz	1KVA	19Inch 2U 562492195(mm)
YKDA-HD2000				2KVA
YKDA-HD3000				3KVA	19Inch 2U 575562195(mm)
YKDA-HD4000				4KVA
YKDA-HD5000				5KVA	19Inch 4U 590570420(mm)
YKDA-HD6000				6KVA

Specification

Model(YKDA-HT)*		1000	2000	3000	4000	5000
Rate Capacity(KVA)		1	2	3	4	5
Rate power(W)		800	1600	2400	3200	4000
DC Input	Rate input voltage	24V
	Rate input Current	42	83	125	167	208
	Shut down voltage range	20V—30V
	Start-up voltage range	22V—28V
	Reflect noise current	≤10%
AC Input	Allow bypass voltage	220Vac±15%
	Rate input Current	4.5	9.1	13.6	18.1	22.7
	Bypass switch time (ms)	≤5ms
AC Output	Rate output voltage and frequency	220Vac,50Hz
	Waveform	Pure Sine Wave
	Rate output current	3.6	7.2	10.8	14.5	18.2
	Output voltage precision	220VAC±1.5%
	Output frequency precision (Hz)	50Hz±0.1%
	Waveform distortion (THD)	≤3% (linear load)
	Dynamic respond time	5% (Load0←→100%)
	Power factor (PF)	0.7/0.8
	Overload ability	120%,30s
	efficiency	≥85%
Operating environment	Insulating intensity	1500Vac,1min
	Noise (1m)	≤40dB
	Operation temperature	-5℃～40℃
	Humility	0～90%, non condensing
	Operation altitude	≤1000m
	Cooling mode	Forced wind cooling
Inverter status		Mains supply is normal, invert normal, battery under voltage, output overloading
Protect function		Input under/over voltage, output overloading, short circuit, city power high-low voltage protection
Output mode		Terminal block
