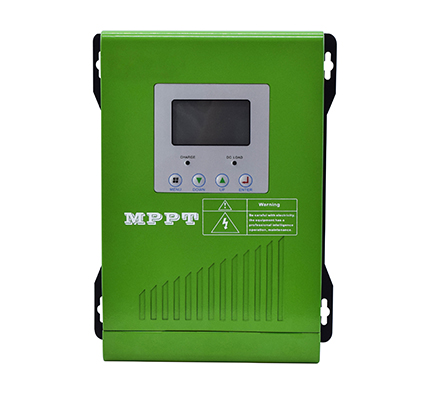

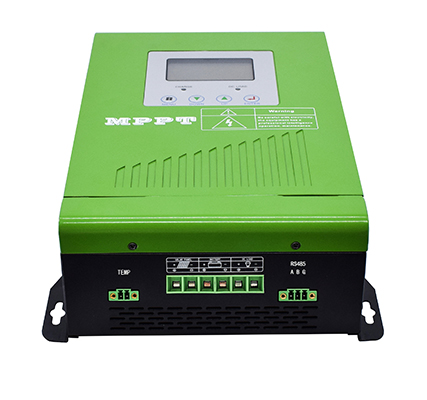

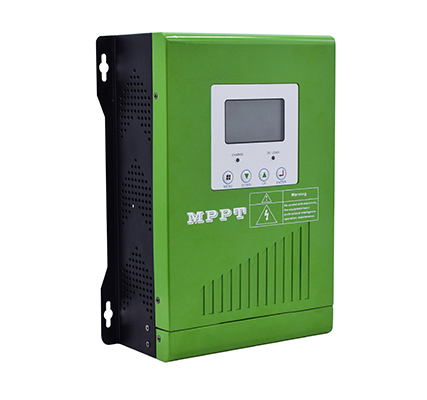

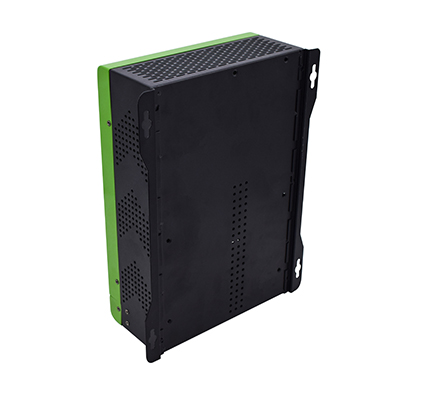

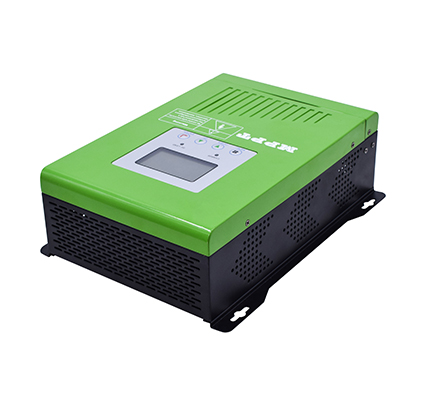

12V/24V/48V 30A 40A 50A 60A 100A 120A MPPT Controller

12V/24V/48V 30A 40A 50A 60A 100A 120A
Product Model : YK-MTseries
Product Information :
1. The new generation of MPPT controller produced by our company is a highly intelligent product developed according to the latest technology. This product has many excellent performances and innovative maximum power point tracking technology, which can significantly improve the energy utilization and conversion efficiency of the solar system. Up to 97%.

Information

1. This controller is used in solar off-grid system (independent system) to automatically adjust charging and discharging. The MPPT controller has an advanced tracking algorithm to obtain the maximum power of the solar cell module and charge the battery; the battery charging process of the MPPT controller is optimized to extend the battery life and improve the system performance.

Character

1. PV wide voltage range input

2. Three-stage charging technology

3. Setting float charging voltage available

4. DSP chip control, high precision, high efficiency

5. Intelligent maximum power point tracking technology

6. Photovoltaic/battery anti-anti protection/short circuit protection/overcurrent protection

Application

Solar Power System

Customize Range

System voltage:12V/24V/48V (Automatic Recognition)

Rated current:30A/40A/50A/60A/100A/120A

Specification

Model YK-series		MT30	MT40	MT50	MT60	MT100	MT120	MT50A	MT60A	MT100A	MT120A
Rated charging current		30A	40A	50A	60A	100A	120A	50A	60A	100A	120A
System voltage		12V/24V/48V (Automatic Recognition)						96V
Rated current		30A	40A	50A	60A	100A	120A	50A	60A	100A	120A
Max current		31A	41A	52A	62A	101A	121A	52A	62A	101A	121A
Charging mode		MPPT Intelligent maximum power point tracking technology
Charging type		Three stages: constant current charge, equal charging, Floating charge
Starting time		≤ 10s
Dynamic response recovery time		≤500us
No load consumption		≤2W
Efficiency		≥96.5%
Display		LCD+LED
System identification voltage range		12V:9-15V; 24V:18-30V; 48V:36-60V; 96V:72V-120V
MPPT operation voltage		12V:20-100V; 24V:38-150V; 48V:65-150V; 96V:145V-200V
Max PV input power	12V	360W	480W	600W	720W	1200W	1440W	4800W	5760W	10KW	11KW
	24V	720 W	960 W	1200W	1440W	2400 W	2880 W
	48V	1440 W	1920 W	2400W	2880W	4800 W	5760 W
Protect function
Function-1		Input and output polarity reverse protection
Function-2		Low voltage protection
Function-3		High voltage protection
Function-4		Short circuit protection
Function-5		Over temperature protection
Cooling method		Cooling fans
Humidity		0~90%RH（No condensation）
Working temperature		0-55℃
Environment temperature		-20℃~+40℃
Storage temperature		-40℃~+70℃
Acoustic noise		≤50dB
Altitude		0~3000M
*Dimensions: LWH (mm)*		22529095				270365120
Weight (kg)		3				6.8
